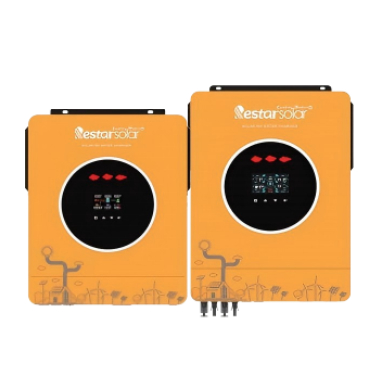

Restar 4.2kW Hybrid Inverter
4.2kW pure sine wave hybrid inverter with built-in MPPT solar charge controller
GH₵ 5,500.00
In stock
Specifications
- PV INPUT:
- Nominal operating voltage:240Vdc
- Vmax PV:500Vdc
- PV input voltage range:60-450Vdc
- Imax PV:18A
- Full load MPPT range:240~450Vdc
- Maximum PV Input power:6200W
- Maximum Solar Charging Current:120A
- GRID/AC OUTPUT:
- Nominal Output Voltage:220/230/240Vac
- Feed-in Grid Voltage Range:195~253Vac
- Feed-in Grid Frequency Range:50±1Hz
- Nominal Output Current:18.2A
- Power Factor Range:>0.99
- Maximum Conversion Efficiency(DC/AC):97%
- Nominal Operating Frequency:50/60Hz
- TWO LOAD OUTPUT POWER:
- Full Load:4200W
- Maximum Main Load:4200W
- Maximum Second Load:1400W
- Main Load Cut Off Voltage:26Vdc
- Main Load Return Voltage:27Vdc
- AC INPUT:
- Nominal operating voltage:230Vac
- Maximum input current:30A
- Nominal operating frequency:50/60Hz
- Surge power:8400VA
- Maximum AC Charging Current:100A
- BATTERY:
- Battery voltage :24Vdc
